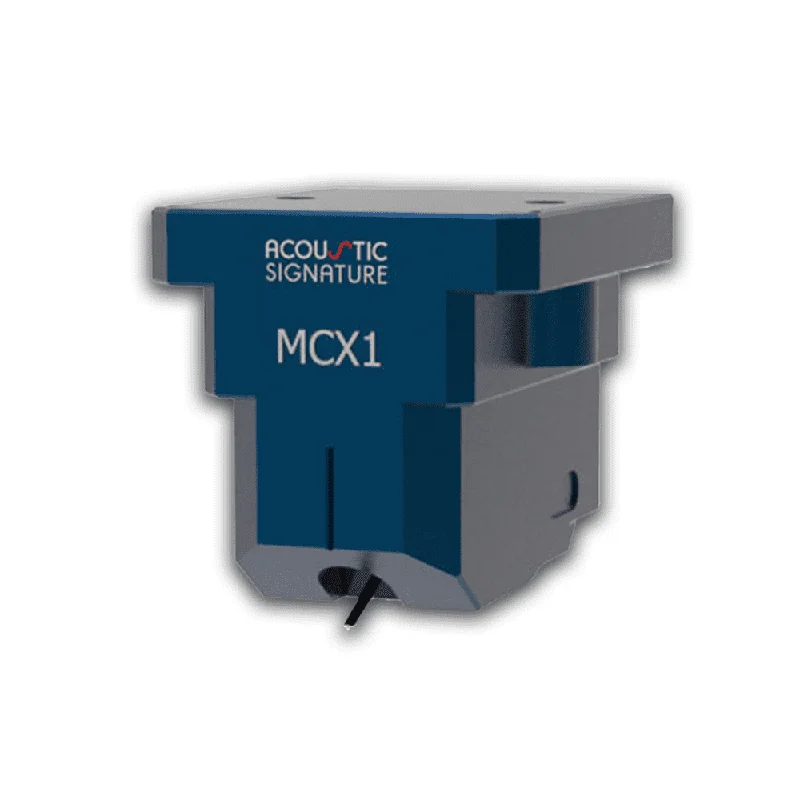

At Acoustic Signature we constantly look for new technology to be used in our products and push the performance of existing technology to a new level. In 2015 we introduced a new series of MC cartridges to the market which was very successful. Based on this experience we decided to develop a new cartridge line that pushes the level higher.
By carefully implementing new manufacturing technology and resonance control techniques for the CNC machined housing of the cartridge we created this fantastic new series of cartridges called MCX series.
Delivers an incredibly open, dynamic sound with a gorgeous touch of warmth.
Technical Specification
| Voltage Out at 1 kHz, 5 cm/sec. | 0.55 mV |
|---|---|
| Channel balance at 1 kHz | > 21 dB |
| Compliance, dynamic, lateral | 15 µm/mN |
| Stylus type | Elliptical |
| Tracking force range | 2.1-2.5 g |
| Tracking force, recommended | 2.3 g (23 mN) |
| Frequency range at -3dB | 20-25 kHz |
| Frequency response 20-20kHz | ± 2.5 dB |
| DC resistance | 7 Ohm |
| Loading | >100 Ohm |
| Coil Material | Copper |
| Cartridge weight | 12.2 g |
