Description

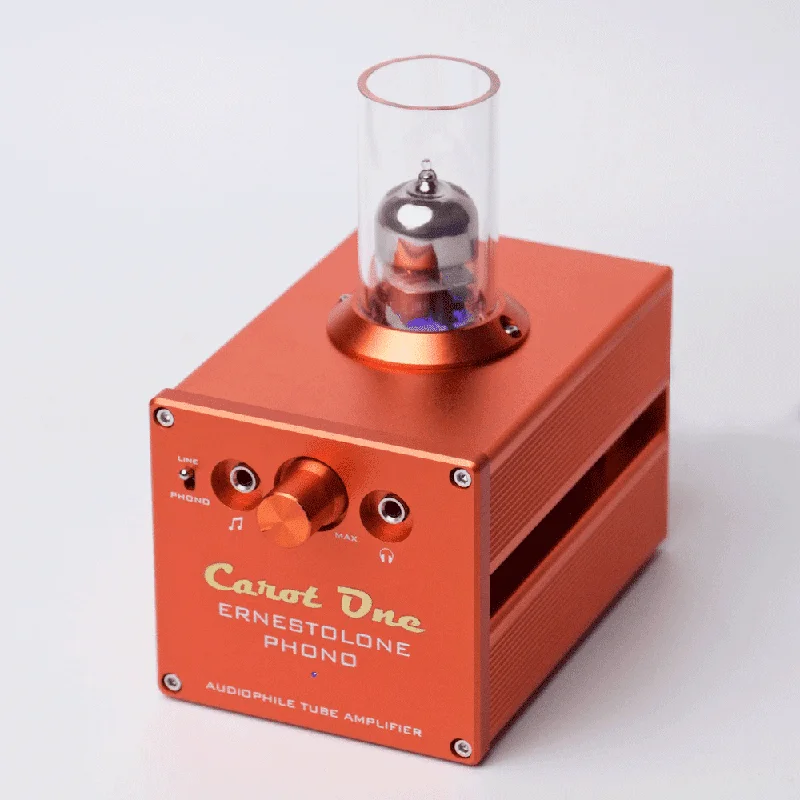

The Magic of ERNESTOLONE for your turntable
Tube integrated amplifier with Phono preamplifier. The tube preamplifier section is completely separate from the power amplifier section, Phono preamplifier MM1 input Line and 1 input Phono
Features
- Power Amplifier Unit:
- Output Power 2x25W @4ohm 2x12W @8ohm(RMS)
- Signal-to-Noise Ratio (SNR) 98dB
- Dynamic Range 98dB
- THD+Noise Audiophile Quality 0.03% @ 9W 4Ohm
- 0.15% @ 8W 4Ohm
- 0.11% @ 6W 8Ohm
- High Power 10% @ 15W 4Ohm 10% @ 10W 4Ohm
- Input Audio IN RCA (Left/Right) x 1
- Power Socket 2.1mm x 1
- Speaker OUT Banana socket x4
- Other Volume & Knob Power ON/OFF switch x
- Power Indicator (Blue LED) x1
- Power Supply DC 12V-13.2V (max.)
- Headphone Amplifier Unit:
- Signal-to-Noise Ratio (SNR) 92dB
- Power Output 600m Watts per channel on 32 Ohm
- Headphone
- Frequency response 15 Hz100 kHz -1db
- Input Impedance 10k Ohms
- Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
- MM Phono Unit:
- Sensitivity 0.35mV for 350mV Output at1KHz
- Input 47k Ohm
- Pre Amplifier Unit:
- Vacuum Tube 6DJ8/6922 series or 12AU7 series (exchangeable)
- Signal-to-Noise Ratio (SNR) 92dB
- THD + Noise 0.05% @ 10k ohm 0.15% @ 33 ohm
- Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
- Output Audio OUT 3.5mm x 1
- Headphone OUT (3.5mm) x 1
- Knob Audio and power switch x 1
- Power Indicator (Blue LED under Tube Socket) x
- Volume Knob x 1
- Power Supply DC 12V-13V (max.)
-
- AC Input Universal AC 100V-240V/50-60Hz
- DC Output DC 12V 5A (60W)
- DC Plug DC 2.1mm
- Ripple & Noise <= 25mV
- Over-load Protection 105%-150%
- Over-voltage Protection 115%-150%
- Dimensions (L)78mm x (W)50mm x (H)33mm
