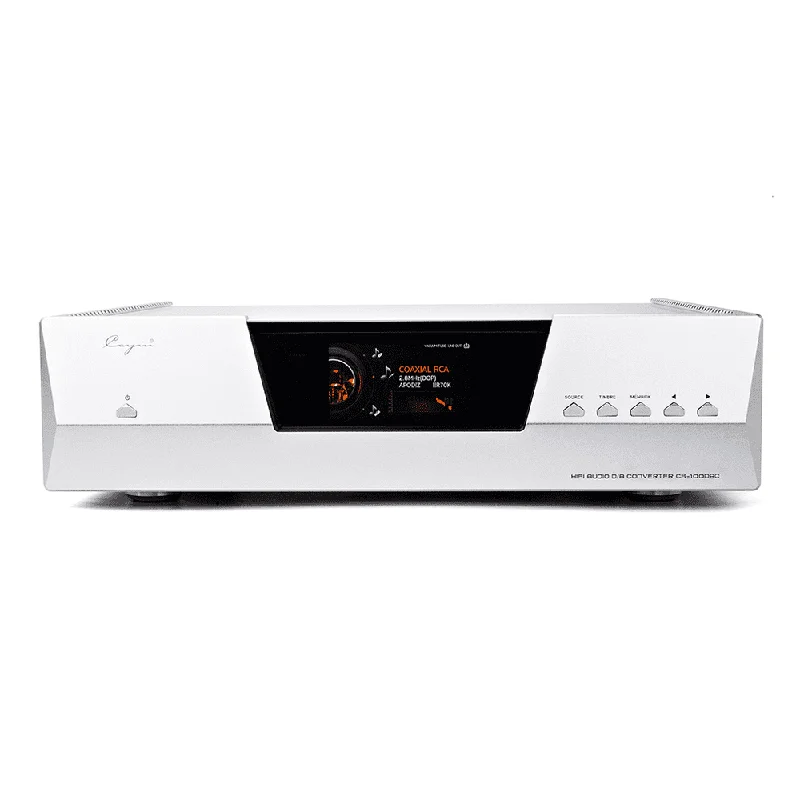

Cayin CS-100DAC – Type UK – Silver

Description

Incorporates six different input connections to match all digital sources.
Also adds a bespoke/de-jittered I2/DSD Input so you can connect to the Cayin iDAP-6, and Cayin N8 for the best performance.

• Coaxial RCA*
• Coaxial BNC*
• Optical
• I2S/DSD
• AES/EBU*
• Asynchronous USB-B

Coaxial input can also support up-to 384kHz with a standard 75 coaxial cable.

Supports Full Reference Pre Amplifier Facility
Pre out is offered as a high end option with a fully independent amplification circuit.

Line Out & Pre Out Support Both Vacuum Tube and Transistor Configurations
Select different output timbres (Transistor or Vacuum Tube) so you can fully enjoy your music, to your taste.

Transistor single-ended and balanced amplification circuit with independent design
The single-ended amplification circuit uses OPA228P
The balanced amplification circuit uses two MUSES02

Uses two 6922EH tubes in each of the single-ended circuit and balanced amplification circuit
Uses the same vacuum tubes in balanced and single-ended output modes.

Features

• Two ESS9038PRO decoding IC’s are applied in the CS-100DAC
• Class A design is applied in I/V conversion circuit. Two OPA228P are used in each left and right channel.
• The exceptional OPA2228P is custom designed into the pre voltage amplification circuit, allowing for reference Pre Amplifier performance.
• Two uber high tolerance Cayin toroidal power transformers are integrated into the CS-100DAC.
• The CS-100DAC hs also been configured with two femtosecond crystals at :
  90.3168MHz
  98.304.MHz
• High Definition AMOLED 3.95″ screen.
• Special Aluminium Alloy is employed in the chassis and sub chassis design, promoting the best mechanical isolation properties.
• The finest brushed aluminium is used on the top cover design, again this top cover is mechanically isolated from the other chassis components.

Technical Specifications

DAC chipset:
ESS9038Pro (x2)

Data processing capability:
I 2 S: up to 32Bit / 768kHz, DSD512
Fully Asynchronous USB: up to 32Bit / 768kHz, DSD512 native, DoP256

outputs:
XLR (balanced), RCA (unbalanced)
Single-ended Line Out (RCA): 2.3V + 2.3V (transistor or tube)
Single-ended Pre Out (RCA): 7.0V + 7.0V (transistor or tube)
balanced line out (XLR): 4.6V + 4.6V (transistor or tube)
balanced Pre Out (XLR): 14.0V + 14.0V (transistor or tube)

Tubes:
4 x 6922EH

Dimensions (LxWxH):
440mm X 392mm X 126mm

Weight (kg):
12 kg

Includes :
Remote Control
