Description

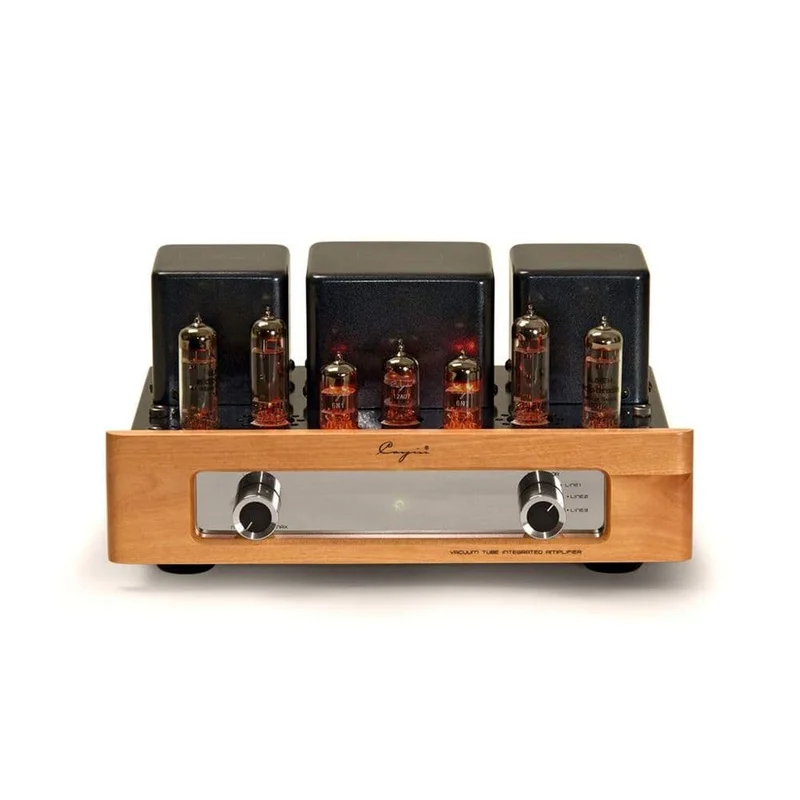

The latest version of the classically designed Cayin MT-12L tube amplifier trusts in two legendary EL-84 tubes per channel, which are controlled by 6N1 double-pole 3-pin tubes. In addition to numerous improvements in detail even a modified wiring of the tube socket was required. In addition to gold-plated connections, careful construction and a noble wooden front panel, the push-pull amplifier for tube ratios offers a decent output for a small price. And if you want to elicit even finer nuances of sound from the Cayin MT-12L, you can tune your amp to your own taste thanks to the large number of EL-84 offshoots.
The Class A / B circuit was built with one 12AX7, two 6N1 and four EL84EH tubes.
The Cayin MT-12L offers separate taps for 4- or 8-ohm speakers as well as three line inputs with solid RCA jacks.
Technical Specifications
| Type of device | Integrated amplifier |
| Frequency Range | 10Hz – 35kHz (-3dB) |
| Harmonic distortion (THD) | 0.5% (1kHz) |
| Signal to Noise Ratio | 86 dB |
| Input Impedance | 100k Ohm |
| Input Sensitivity | 260mV |
| Tubes | 1 x 12AU7, 2 x 6N1, 4 x EL84 |
| Inputs | 3 x line |
| Circuit | Class A / B |
| Housing Color | Black |
| Front Panel | Real wood and chrome |
| Speaker Impedance | 4 ohms – 8 ohms |
| Output power (RMS) at 4 and 8 ohms | 9W + 9W |
| Maximum power consumption | 80VA |
| Mains Voltage | 230V AC / 50Hz |
| Dimensions (W x D x H) | 330mm x 245mm x 160mm |
| Mass | 8.3 kg |
