Description
Over more than 45 years experience in audio, Charisma Audio have collected the solid ideas which inspire the design and manufacture of our accessories. Using premium materials, these not only look attractive but also show striking performance.

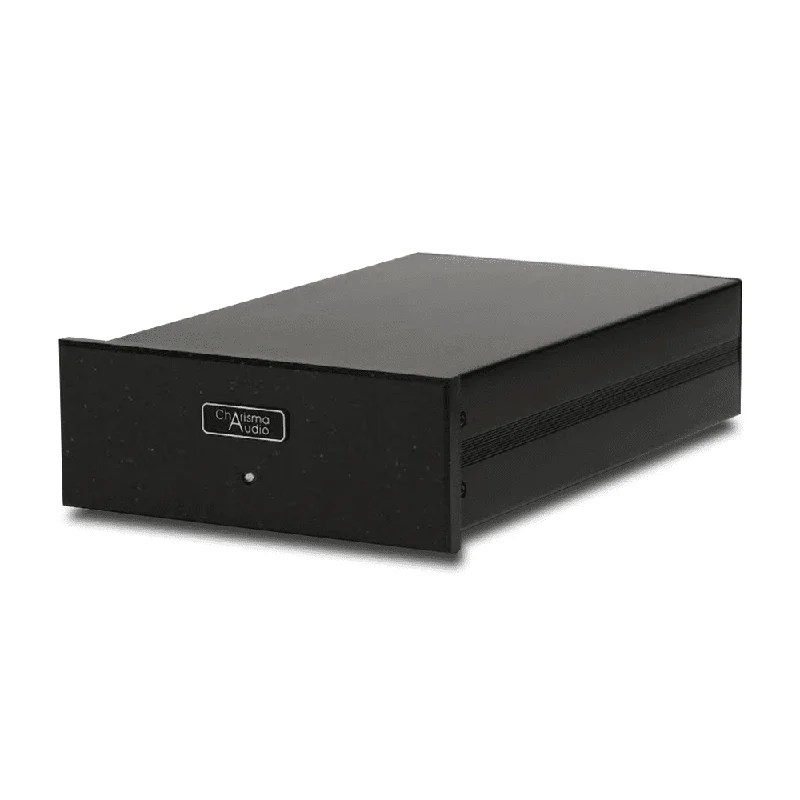

The Musiko phono stage is compact, neat and versatile. It accepts both moving magnet and moving coil cartridges. Impedance and gain can be adjusted simply, by using the DIP switches located on the back panel of the chassis.
Features
- Premium aluminum chassis with granite faceplate
- EI power transformer
- Gold plated RCA jacks
- Externally adjustable input impedance and gain
- Custom made audio grade electrolytic capacitors
- 75,200 uF of total filtering capacitance
Technical Specifications
- Frequency response: 20Hz 20,000Hz (+/- 1dB)
- Signal-to-noise ratio: -86dB (at 64dB gain)
- Channel separation: 90dB
- Total harmonic distortion: 0.05% (at 1kHz)
- Input impedance: 47k Ohm (MM) / 117 Ohm 1k Ohm (MC)
- Gain: 42dB (MM) / 58dB, 61dB and 64dB (MC)
- Dimensions: 290 x 171 x 75 mm (D x W x H)
Manufacturer Site
- Charisma Audio
