Description

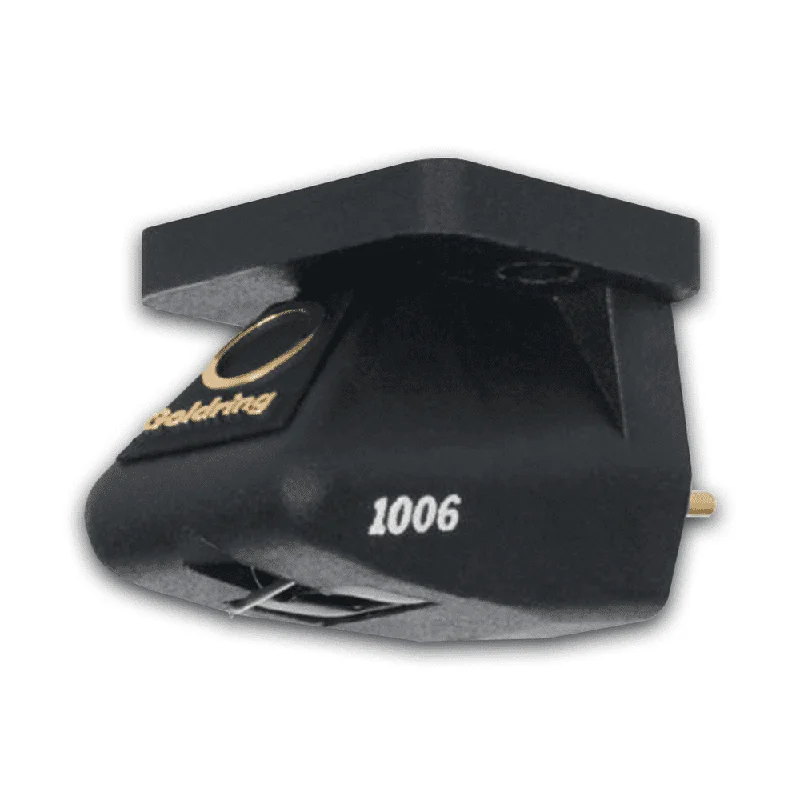

The Goldring 1006 is designed for owners who want to get the very best from their systems at an affordable price. This cartridge has an elliptical tip for improved high frequency clarity and a powerful magnet to ensure high sensitivity.
Technical data
| Frequency Response | 20Hz-20kHz3dB |
| Channel Balance | 2dB @ 1kHz |
| Channel Separation | 25dB @ 1kHz |
| Input Load | 47K |
| Sensitivity | 6.5mV1.5dB, 1kHz @ 5 cm/sec |
| Static Compliance | 24mm/N lat., 16mm/N vert |
| Equivalent tip mass | 0.45 mg |
| Vertical Tracking Angle | 24 |
| Stylus Radius | Elliptical |
| Stylus Type | Replaceable |
| Load Resistance | 47,000 Ohm |
| Load Capacitance | 150-200pF |
| Internal Inductance | 570 mH |
| Internal Resistance | 660 Ohm |
| Cartridge Weight | 6.3g |
| Fixing Centre | 12.7mm |
| Playing Weight | 1.7g nom. |
