Description

World-class performer in signal transmission

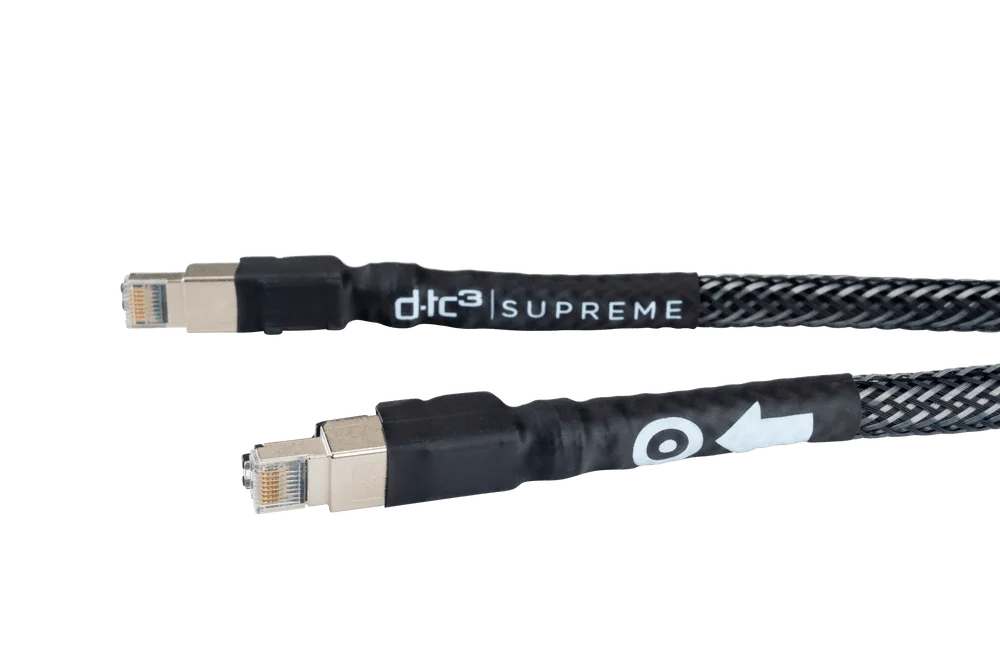

The Ansuz Digitalz Ethernet D-TC3 Supreme is the ultimate ethernet cable. Equipped with Ansuz most sophisticated and most advanced noise reduction technologies this cable is a world-class, top-of-the-line signal cable. Ultra-fine, authentic and natural resolution of the entire sound spectrum from the very high pitch to the deepest bass opens up a new dimension of musicality and creates a jaw-dropping holistic soundstage that defies any further .

Cutting edge technologies.
Ansuz develops and manufactures cables based on advanced, cutting edge technologies. Ansuz cables deliver a pure signal flow that unleashes the authentic sound originally intended by the master recording. To achieve this, it is imperative to lower resistance, curb induction and reduce noise floor to a minimum. The more advanced the cable series, the more refined and sophisticated the implemented technologies, and the more transparent, holistic and authentic the resulting soundstage (PowerBox required).

Connectors

Golden connection.
The connectors are made of gold-plated pure copper.

Conductors Ethernet

Carefully tuned signal handling.
Conductors consist of eight wires, each made of shielded, silver-plated copper.

The Tesla coil principle

The key operating principle of the Ansuz Tesla coil is to have two coils wound in opposite directions – one coil and one counter coil. In Ansuz words, this is called “A double inverted coil”. The two coils both carry voltage, and when one of the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise. Since noise spikes are pure voltage carrying virtually no charge, the cancelation is quite good, but not perfect. Adding more Tesla coils in parallel, increases the noise cancellation and the perceived blackness in the music increases significantly along with the purity and clarity of the sound. Ansuz uses various types of Tesla coils, as their individual properties ideally complement and reinforce each other.

Passive end coil technology

Noise control.
The passive end coil prevents noise in bleeding into the audio components. The Tesla coil is mounted just before the connector and when the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise.

Active cable Tesla coil

Active anti aerial protection.
The active cable Tesla coil is wound directly on the outer part of the cable and protects the signal from absorbing the airborne RF noise. This noise is absorbed in the Tesla coil. The active version is about three to four times more efficient than the Passive cable Tesla coil.

Chromed steel housing – Beautiful strong surface

The housing is made of metal and chromatized with in-house made laser engravings.

Ansuz charged dielectric

Redirects electrical charge.
To provide the best possible signal transmission, Ansuz has implemented this technology in all of its most exclusive series. The idea behind this innovative concept is to electrically charge the insulating layer, which is made of Teflon. Teflon is one of the strongest dielectric materials and ensures the creation of an internal electric field, which makes it possible now to obtain the same charge at a lower voltage.

Twisted Pair

Twisted pair cabling is a type of wiring in which two conductors of a single circuit are twisted together. Compared to a single conductor or an untwisted balanced pair, a twisted pair reduces electromagnetic radiation from the pair and crosstalk between neighboring pairs and improves rejection of external electromagnetic interference. For additional noise immunity, the twisted-pair is shielded individually.

Details for Additional PowerBox

PowerBox D-TC Supreme

World-class performer in signal transmission

The Ansuz Powerbox D-TC Supreme is the ultimate power box . Equipped with Ansuz most sophisticated and most advanced noise reduction and dither technologies, this is a world-class, top-of-the-line power box. Ultra-fine, authentic and natural resolution of the entire sound spectrum from the very high pitch to the deepest bass opens up a new dimension of musicality and creates a jaw-dropping holistic soundstage that defies any further .

Technologies and Components

Delivering clean low voltage.
The Ansuz PowerBox is developed with the aim of delivering clean low voltage to the cables and speakers. This is overall solved by reducing the noise heavily and controlling the resonances. Various Ansuz technologies and principles are used in order to deliver a huge soundstage with openness musicality and details. The recurring technologies are securing that almost no noise is transferred from the PowerBox to the cables and speakers.

Natural-based composite cabinet material

The cabinet design is an important Ansuz characteristic and is designed to eliminate sonic distortion. The disturbing sonic influence, which emanates from the material the cabinet is made of – mostly aluminium – comes from its mechanical resonance. To eliminate this sonic distortion, the challenge is to minimize the use of aluminium in the cabinet. Ansuz’s sister company Aavik began testing various materials and designed an innovative natural-based composite material, which reduces the mechanical influence, particularly the hysteresis. The sonic result is distinctly audible and reflects a further prominent cornerstone in Ansuz’s quest for the ultimate music experience.

The Tesla coil principle

The key operating principle of the Ansuz Tesla coil is to have two coils wound in opposite directions – one coil and one counter coil. In Ansuz words, this is called “A double inverted coil”. The two coils both carry voltage, and when one of the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise. Since noise spikes are pure voltage carrying virtually no charge, the cancelation is quite good, but not perfect. Adding more Tesla coils in parallel, increases the noise cancellation and the perceived blackness in the music increases significantly along with the purity and clarity of the sound. Ansuz uses various types of Tesla coils, as their individual properties ideally complement and reinforce each other.

Active square Tesla coil

Embedded efficiency.
The active square Tesla coils are embedded in our printed circuit boards – a coil on the top and the counter coil on the back. The principle is exactly the same as the active Tesla coil and thus has a greater ability to eliminate noise than the passive Tesla coils.

Active cable Tesla coil

Active anti aerial protection.
The active cable Tesla coil is wound directly on the outer part of the cable and protects the signal from absorbing the airborne RF noise. This noise is absorbed in the Tesla coil. The active version is about three to four times more efficient than the Passive cable Tesla coil.

Analog Dither technology

Musical information from the depth.
Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. Ansuz adopted this technology. Their active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.

Passive cable Tesla coils

Airborne noise elimination.
The passive cable Tesla coil is wound around the outer part of the cable and protects the cable from absorbing disturbing airborne RF noise. This noise is absorbed in the Tesla coil and eliminated in the counter coil. When voltage flows through the cable’s conductor, which is wound in the opposite direction, it operates as this counter coil, which eliminates the RF noise.

Ansuz active Tesla coil

The Ansuz Tesla coil technology is based on two coils wound in opposite directions; one is a regular spiral and the other is its mirrored counterpart. In Ansuz words, the combination of these parts as explained is called a “double-inverted coil”. Both these Tesla coils are voltage carriers, so when one of them encounters a voltage spike, the other activates a counter-surge to cancel the first peak and in effect suppress the noise. Since these noise spikes are pure voltage without a charge, the cancelation effect is quite strong.
Although the fundamentals of the Ansuz Tesla coil technology are the same for its passive and actively powered variants, the latter’s noise suppression efficiency is much greater. Most importantly, active and passive Tesla coils don’t exclude one another. It is the other way around. These devices mutually support each other to keep on lowering noise floor of a product they’re installed into.
